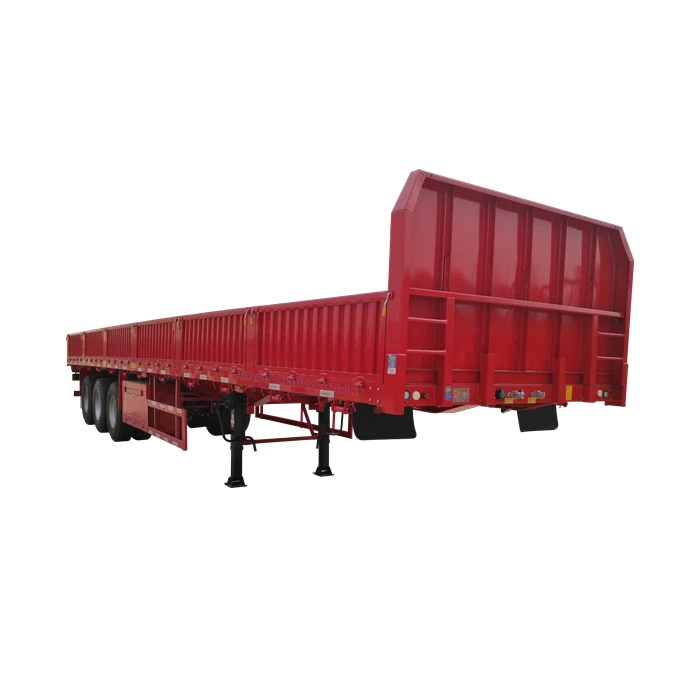

Side Wall Flatbed Trailer

Side Wall Flatbed Trailer

The trailer is usually used to transport heavy goods such as steel pipes, channel steel, mechanical parts and so on.

Jinan East China CIMC Special Vehicle Co.,Ltd. is one of the leading manufacturers and suppliers of side wall flatbed trailer in China. We warmly welcome you to buy side wall flatbed trailer for sale here from our factory. Contact us for more details.



Product Description:

a) The side wall height of the trailer is usually 600 mm、800mm. The opening mode of the door can be customized.

b) Side wall flatbed trailer was popular by logistics companies as its multipurpose application. It can be used to transport livestock bulk cargos and other goods.

c) Main beam adopts high strength steel, stability and safety when operating in harsh road conditions.

d) Long service time, save maintenance costs and improve operating efficiency.


Side Wall Flatbed Trailer

3 Axles 60tons and 80tons High Bed Cargo Semi Trailer


Side Wall Flatbed Trailer

3 Axles 80tons High Dropside Side Wall Container Cargo Semi Trailer


Side Wall Flatbed Trailer


Product Parameters:

Product Name

Side Wall Flatbed Trailer

Dimensions (Lx W x H)

13000x2500x3600mm (can be customized)

Payload

80tons

Axle

3*13ton FUWA brand

Suspension

Mechanical suspension with 10/10/10

Main Beam

Height:500mm, upper plate is 14mm,down plate is 16mm, middle plate is 8mm. Material: Q345B Steel

Through beam and Side beam

10# channel steel, 14 U shaped steel or channel steel

Side wall height

1600mm corrugated steel plate

Platform thickness

3mm-5mm /Q235steel

Tire

Triangle brand, 12R22.5 (12pcs)

Traction Pin

2”(50mm)or 3.5”(90mm)traction pin

Landing Leg

28T load landing leg

Brake system

Dual Line braking system/Optional ABS

Brake chamber

Six double chamber

Electrical System

24v, 7core socket, LED lights (suitable for all market)

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats




Our Advantage

A. Traning of trailer operating and normal maintenance.

B. Supply the service of regular repair.

C. Solve the customer’s advisory.

D. Faster, better and more professional.

E. The overseas engineers are always ready to deal with unexpected needs.

F. 24 hours hotline.
