Jinan East China CIMC Special Vehicle Co.,Ltd. is one of the leading manufacturers and suppliers of container chassis trailers in China. We warmly welcome you to buy container chassis trailers for sale here from our factory. Contact us for more details.

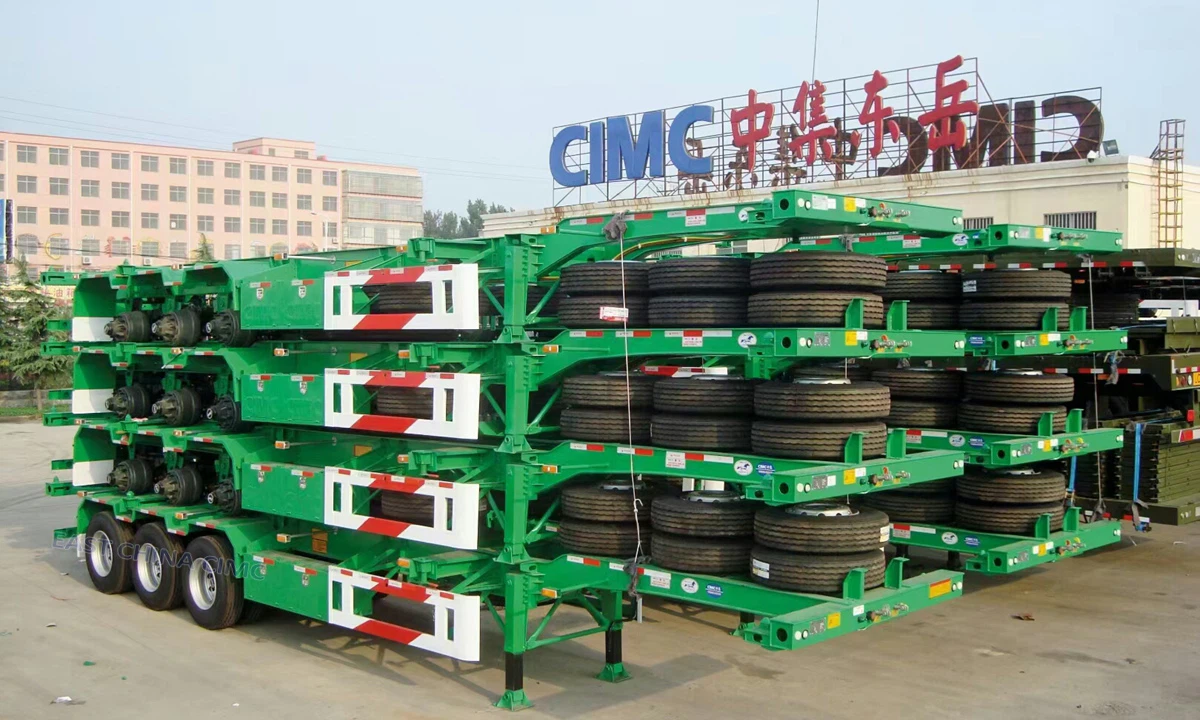

CONTAINER CHASSIS TRAILER: AN EXCELLENT PARTNER FOR CONTAINER TRANSPORTATION
Container chassis is also called Skeleton Trailer or Intermodal Chassis semi trailer.
As the name implies, Container Chassis is a semi trailer suitable for transporting containers and ISO Tanks from docks to factory warehouses, not only for docks, but also for any place where ISO Tank container need to be transported, such as factories, logistics parks, chemical plants and so on. Compared with other flatbed trailer or lowbed trailer, Skeleton Trailer are characterized by light weight, high load and low maintenance cost. And the international standards are highly applicable, and the general length is divided into 20 feet, 40 feet, 45 feet, 53 feet and so on. The width is the standard 8 feet, and some people will customize it to 2500 mm. The skeleton trailer is hollowed out like a human bone, which reduces the use of plates and the weight and cost. The lightest weight can reach 4500kg or even lower, so it is widely used in multimodal transport.
Usually, container trailers are mostly used in ports, docks and container yards, and can be quickly loaded and unloaded and piled up with side loaders. It is also suitable for cold chain transportation, and it can realize the transportation of refrigerated goods at lower cost by purchasing the styles of refrigerated container and container chassis.
For the transportation of hazardous chemicals ISO Tank, a trailer with an anti-collision tail platform can be used. A container chassis, suitable for chemical, food and energy industries. At the same time, container chassis is adopted, and Drop＆Swap greatly improves the efficiency. The warehouse is packed in advance, and the container is changed directly when the skeleton trailer arrives, which greatly reduces the waiting time for loading and unloading, and is suitable for high-frequency round-trip lines.
In a word, container chassis is used to transport dry container, refrigerated container, chemical ISO Tank, with light weight, high load, fast loading and unloading, and high efficiency: it is suitable for side loader, and it can be left immediately after being dumped. Strong versatility: one trailer is suitable for 20/40/45ft standard containers, tanks and large pieces. Low cost: cheap trailer purchase/maintenance, and low fuel consumption in empty trailer transportation. It is an excellent choice for the transportation industry.
We can provide all kinds of container chassis.
|
Type |
Describe |
Superiority |
|
Standard container chassis |
20 feet, 40 feet, 45 feet |
High cost performance and wide application. |
|
Telescopic container chassis (stretchable) |
The length can be adjusted freely, and a container of 20/40/45ft is universal. |
Suitable for mixing and transporting containers back and forth, transporting scattered containers, and being multifunctional and universal. |
|
Gooseneck container chassis |
Front sinking gooseneck structure |
Adapt to high cabinets and cold containers to reduce the height of the whole vehicle. |
|
Special container chassis vehicle for tank (ISO Tank skeleton) |
Limit with twist lock, reinforced cross beam, anti-sway fixing structure, electrostatic belt, fire prevention device, explosion-proof fittings, flame-retardant wire harness and identification bracket. |
Special for imported cabinets from Europe, America and Southeast Asia, with better driving stability. |
|
Split/combined container chassis |
Front and rear split structure, which can be split and pulled 20 feet separately and 40/45 feet in combination. |
Logistics park and short-distance barge are super cost-effective |
|
Side-moving container chassis |
The twist lock can be adjusted horizontally from left to right, |
Adapt to non-standard width containers and non-standard cabinets in North America. |
|
Special container chassis for refrigerator |
Reserve generator bracket, cable fixing groove and ventilation reinforcement structure. |
Specialized in transporting cold chain REEFER containers |
|
Special light container chassis for short barge port |
Lightweight design, simple structure and extremely light weight. |
The interior of the dock and the storage yard are dedicated for short-distance cabinet dumping, which is not suitable for long-distance transportation. |
Key specifications
- Length: 20 feet /40 feet /45 feet /53 feet optional
- Container twist lock: 4/8/12/16 sets are optional.
- Loading capacity: 25 -60 tons optional
- Axles: 2/3/4/5/6, and brands such as CIMC/BPW/FUWA can be specified.
- Tyre: 12R22.5, brands such as CHAOYANG/LINGLONG/TRIANGLE can be specified.
- Suspension: mechanical suspension and air suspension are optional.
- Braking: double air chamber braking system, equipped with ABS or EBS.
- Characteristic structure: customized production can be carried out as required. For details, please consult us to send you design drawings!
Core product advantages:
It has high bearing strength, excellent safety and durability.
The equipment is made of Q235/Q345 high-strength steel with strong structural rigidity, which can effectively resist bumps and impacts during container transportation and prevent hidden dangers such as frame deformation and fracture.
Flexible and adjustable ground height, suitable for multi-scene transportation: different types of tires and suspension systems can be flexibly matched according to customers' actual transportation needs, road conditions and cargo specifications.
The ultimate bearing redundancy is sufficient, and the safety factor is full:
the product design strictly follows the safety standards for heavy-haul transportation, including the model with rated bearing capacity of 60 tons, the measured static load can reach 78 tons, and the overload safety factor can reach 1.3.
Excellent anti-corrosion technology, suitable for harsh environment:
adopting high-quality environmental protection painting technology, the paint surface is uniform and thick, with strong adhesion, and it is not easy to fall off and fade; At the same time, it can provide zinc plating process selection. Through professional zinc plating, the corrosion resistance and corrosion resistance of products are greatly improved, especially against the corrosion of sea breeze and sea salt, and the maintenance cost in the later period is reduced.
Mature and complete industrial chain has obvious cost performance advantages:
relying on its own production base and perfect supply chain system, the whole process is controlled independently from steel procurement, parts processing to vehicle assembly, and the industrial chain is highly mature, effectively shortening the production cycle, and conventional models can be delivered quickly to meet customers' urgent orders; At the same time, large-scale production reduces the unit production cost and has obvious price advantage compared with competing products with the same configuration.
Why did you choose us?
- We have more than 20 years of experience in R&D, manufacturing and export, and have rich experience in the whole process of container chassis, including design, production, manufacturing, delivery and export. We can respond online in time 24 hours a day and can deal with any needs of you urgently.
- The factory is in China. As we all know, the trailer made in China is very cost-effective, and the products are cheap and sturdy, and the quantity is large enough.
- Top material guarantee, clear specifications, and open and transparent production process.
- Excellent customization ability, tell us your needs, and we will make a plan for you that meets your transportation needs.
- High-quality after-sales and maintenance guarantee, providing engineers with remote maintenance services and free delivery of accessories.
