Our company pays attention to improve the profitability and cash creation ability of its ASME standard 40ft container chemical tanker, 3 axles 12 wheels side dump truck trailer capacity, 40ft ISO container chemical tanker operators in production and operation. Our products are certified for safety and performance. Through professional teamwork we have gained a large number of stable and long-term overseas customers. We cultivate creative thinking and pioneering ability, and hope to build the company into a lifelong learning organization.

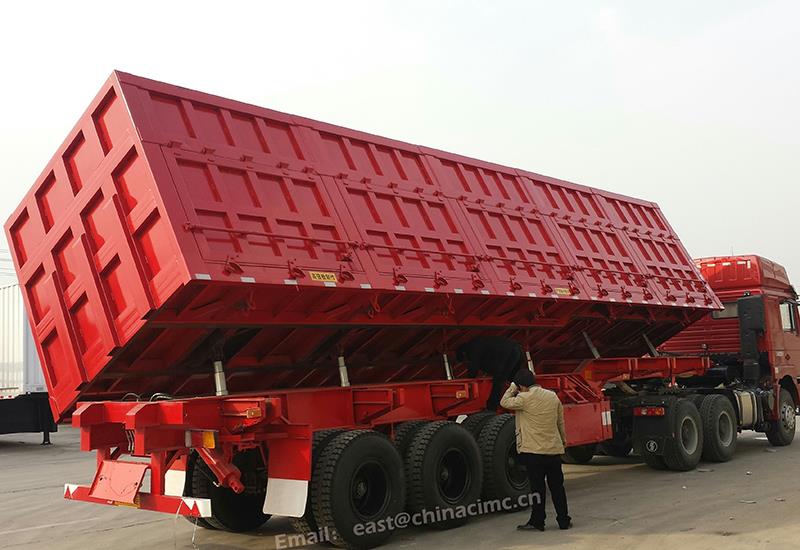

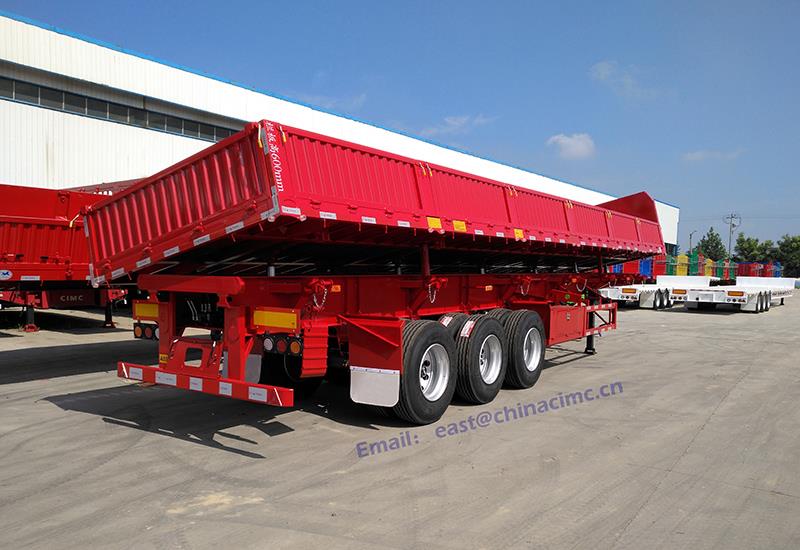

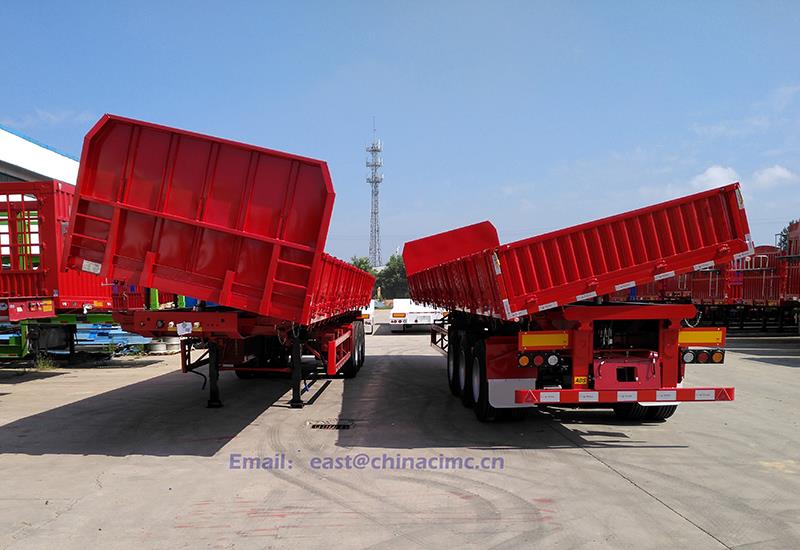

Product Description:
a) Can be customized according to transportation needs, the size can be customized to 9 meters 11 meters 13 meters, etc.
b) Trailer side wall height is usually 600 mm. According to customer requirements, we can customize different axles, side wall height and load weight.
c) We can provide dump trucks as follows: Side Dump Trailer, Side Tipping Trailers, U Type dump trailer, Tipper trailer, Dump Truck Trailer
d) Powerful chassis structure and suspension system make dump truck load larger and suitable for complex and harsh road transportation conditions.
The volume and carrying capacity of trailers can be customized to meet the needs of customers.
Side wall height can be customized according to customer requirements.
Product Parameters:
Product Name | Side Dump Trailer |
Dimensions (Lx W x H) | 11800x2500x3500mm (can be customized) |
Payload | 40tons~80tons |
Axle | 3*13ton FUWA brand |
Suspension | Mechanical suspension with 10/10/10 |
Main Beam | Height：500mm, upper plate is 16mm,down plate is 16mm, middle plate is 10mm. Material: Q345B Steel |
Through beam and Side beam | 10# channel steel, 14 U shaped steel or channel steel |
Lifting system | full set of HYVA hydraulic lifting cylinder |
Side wall thickness | 3mm-6mm /Q235 steel |
Platform thickness | 5mm-8mm /Q235steel |
Tire | Triangle brand, 12R22.5 (12pcs) |
Traction Pin | 2”(50mm)or 3.5”(90mm)traction pin |
Landing Leg | 28T load landing leg |
Brake system | Dual Line braking system/Optional ABS |
Brake chamber | Six double chamber |
Electrical System | 24v, 7core socket, LED lights (suitable for all market) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Our Advantage
A. FACTORY DIRECT: No middlemen to make extra profit, communicate directly and smoothly.
B. Ricn experiance in designing and production
Provide a variety of solutions to meet your needs.
C. Good cooperation with logistics companies, make sure you to receive qualified products.
Our company adheres to the tenet of 'Because of focus, so professional!' After long-term unremitting efforts, our company has developed into a modern 80tons Long Cargo Side Dump Trailer manufacturing enterprise with strong core competitiveness. Should any of these products be of interest to you, please let us know. Our company adheres to the customer demand first, leads the market to upgrade the development idea and provides the suitable product for the customer.
