Jinan East China CIMC Special Vehicle Co.,Ltd. is one of the leading manufacturers and suppliers of hydraulic container dump semi trailer in China. We warmly welcome you to buy hydraulic container dump semi trailer for sale here from our factory. Contact us for more details.
Product Description:
a) Container dump trailer adopts advanced design concept. After fully understanding and analyzing the traffic environment of different countries, it is equipped with different axles and suspension systems to adapt to different operations.
b) The sturdy self-unloading chassis and container are fixed with twist locks and can be used separately to meet the transportation of different goods, safe and reliable.
c) Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
d) Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
e) We suppply tipper semi trailers with multiple customization options.
Flat type rear flip dump trailer.

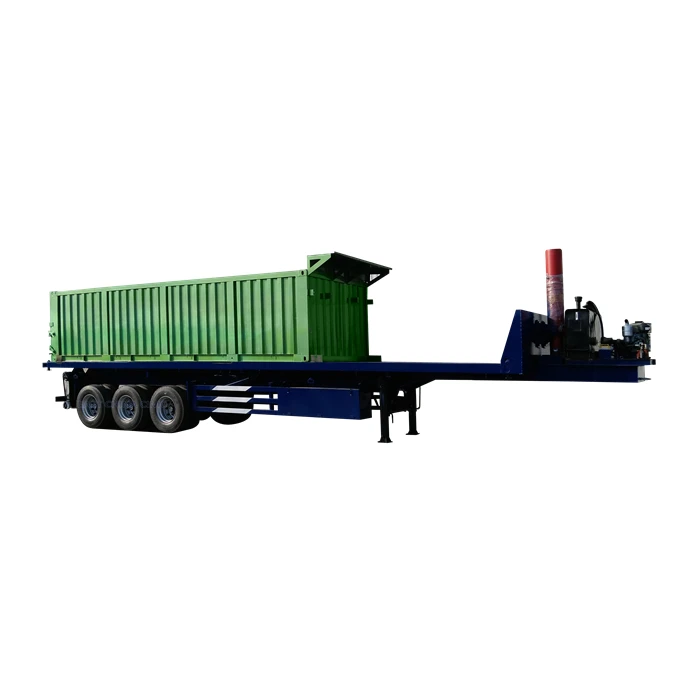

tri axles 40 tons hydraulic container dump semi trailer
Product Parameters:
Product Name | Hydraulic Container Dump Semi Trailer |
Dimensions (Lx W x H) | 12500x2500x3500mm (can be customized) |
Payload | 40tons~60tons |
Axle | 3*13ton FUWA brand |
Suspension | Mechanical suspension with 10/10/10 |
Main Beam | Height：500mm, upper plate is 14mm,down plate is 16mm, middle plate is 8mm. Material: Q345B Steel |
Through beam and Side beam | 10# channel steel, 14 U shaped steel or channel steel |
Lifting system | full set of HYVA hydraulic lifting cylinder |
Platform thickness | 5mm-8mm /Q235steel |
Tire | Triangle brand, 12R22.5 (12pcs) |
Traction Pin | 2”(50mm)or 3.5”(90mm)traction pin |
Landing Leg | 28T load landing leg |
Brake system | Dual Line braking system/Optional ABS |
Brake chamber | Six double chamber |
Electrical System | 24v, 7core socket, LED lights (suitable for all market) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Remark: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories. | |
